Every move precise. Every
detail in focus.

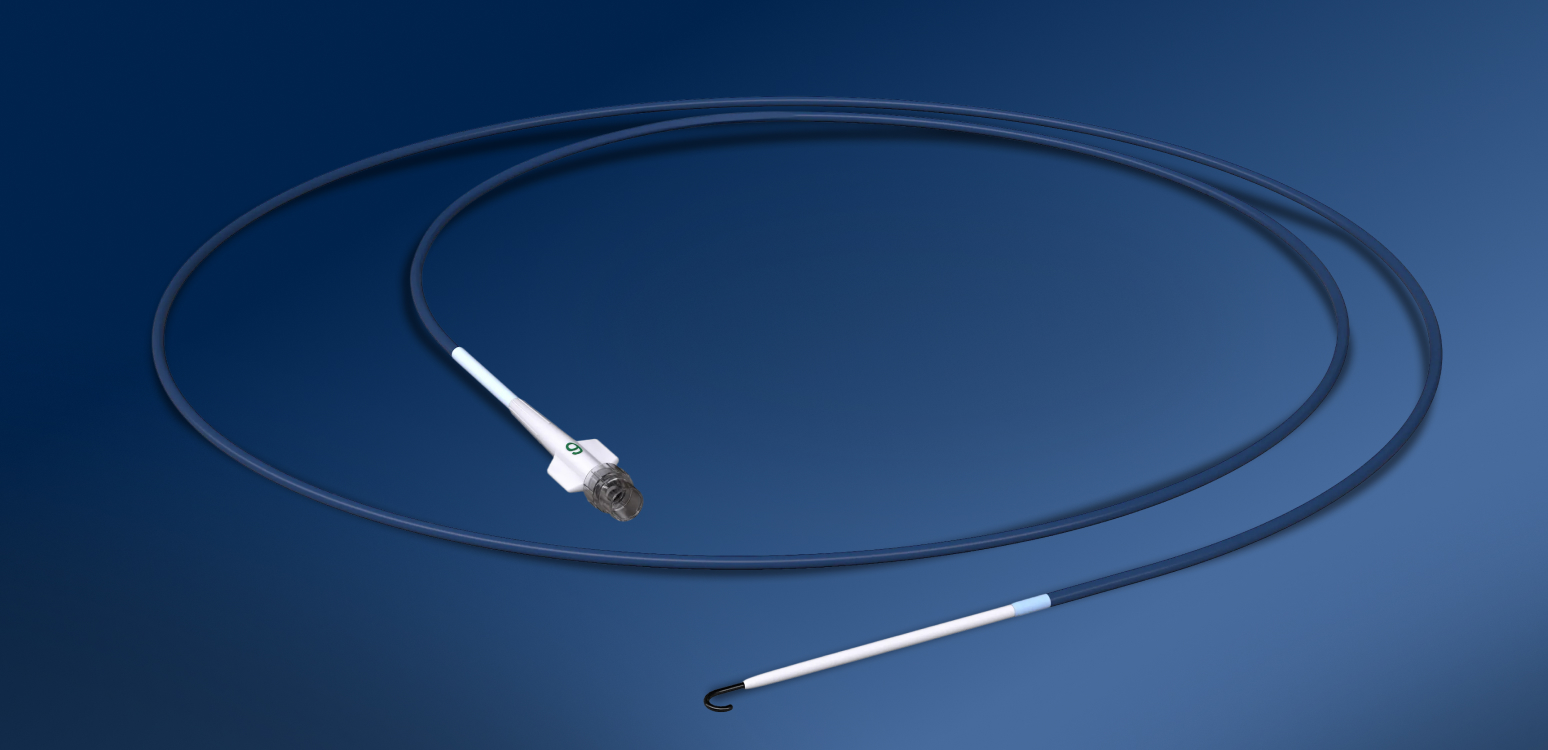

SimplGuide™ — Precision you can see. Performance you can trust
SimplGuide brings precision to motion: combining visibility, control, and ease of use in one refined design. The radiopaque tip offers unmatched fluoroscopic clarity, while the hydrophilic coating ensures smooth, responsive movement. With a stable, non-coated fixture zone for secure handling, SimplGuide empowers you to navigate confidently and deliver with precision from access to target.
SimplGuide has been designed to provide a pathway through which any 6F compatible therapeutic and diagnostic devices, including the ProtEmbo CPS, are introduced to the coronary or peripheral vascular system.
A sophisticated technology made Simple

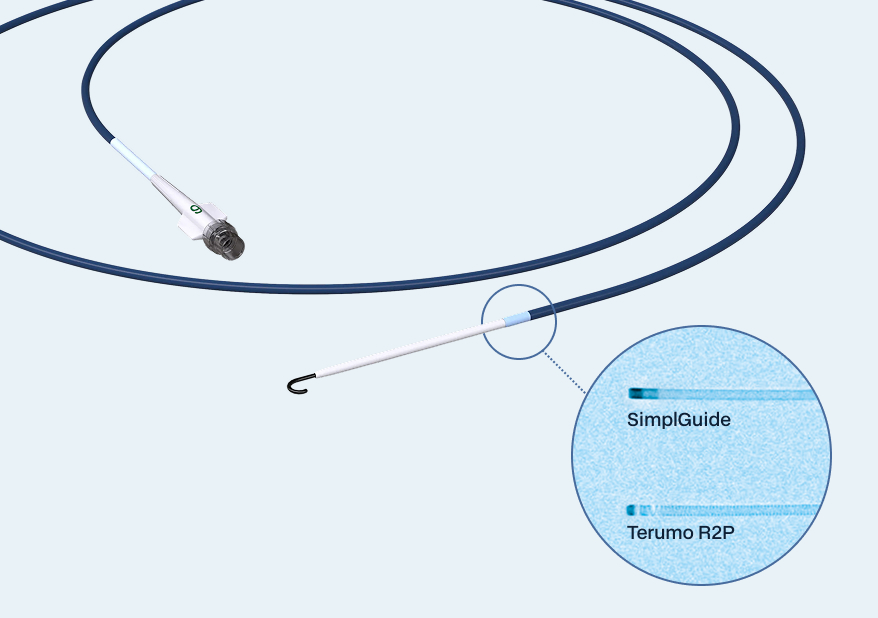

Featuring a radiopaque tip with a highly visible marker band, SimplGuide offers unmatched fluoroscopic clarity for accurate navigation through any anatomy regardless of the complexity.*
*Data on file

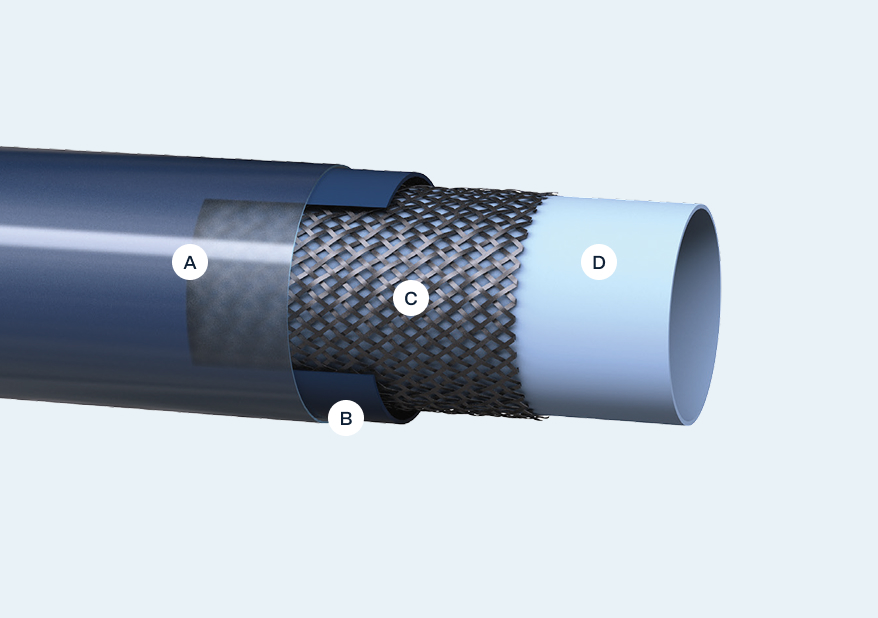

A) Hydrophilic coating
B) Polymer material
C) Braiding
D) PFAS free inner liner
Braided design
The braided construction delivers superior tensile strength and minimizes vascular risk during spasm, ensuring consistent, dependable performance

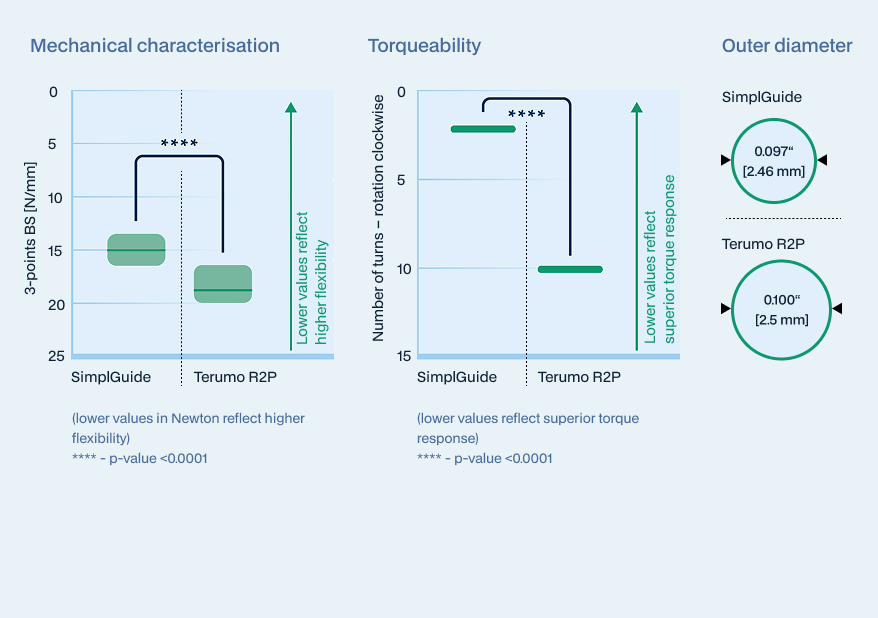

Mechanical characterisation
The superior flexibility of the SimplGuide compared to the competitor was demonstrated using a “three-point bend test”, with statistical significance assessed by an unpaired t-test.*
Torqueability
In a worst-case left subclavian simulation, SimplGuide showed superior torque response, achieving a full 360° distal turn with only 1.5 proximal rotations.*
*Data on file
Intended Use/Intended Purpose
The Guiding Sheath is designed to provide a pathway through which therapeutic and diagnostic devices are introduced. The Guiding Sheath is intended to be used in the coronary or peripheral vascular system.
Indications
The Guiding Sheath is indicated for the introduction of therapeutic and diagnostic devices into the peripheral and coronary vasculature through an access site.

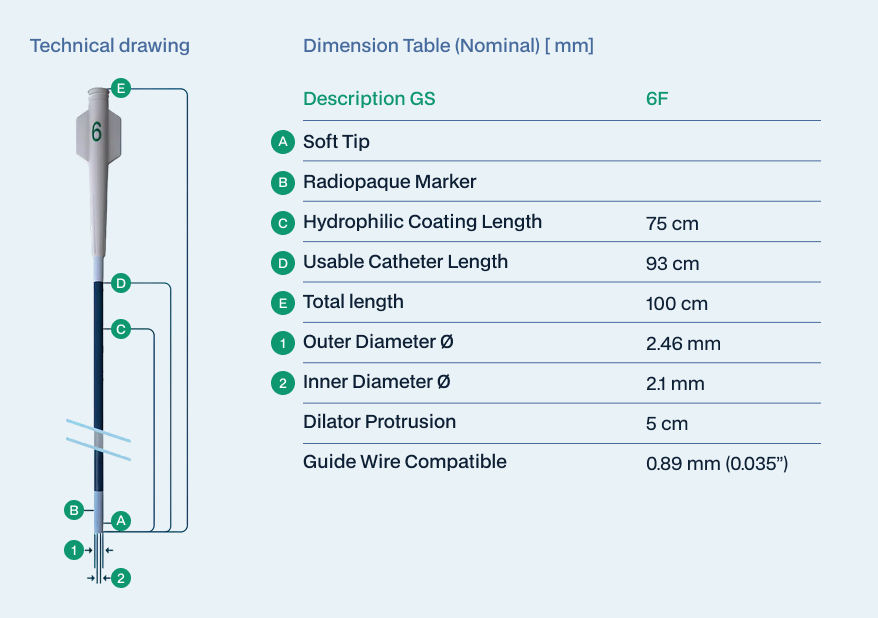

Order Information
Reference Number: 561913108
Tip Configuration: Straight
Distribution Partner
Protembis GmbH
Zentrum für Biomedizintechnik
Pauwelsstr. 17, 52074 Aachen
Tel.: +49 241 9903 3622
E-mail: info@protembis.com
www.protembis.com
Manufacturer
PendraCare International B.V.
Van der Waalspark 22
9351 VC Leek, e Netherlands
Tel.: +31 (0)594 510755
E-mail: info@pendracare.com
www.wellinq.com
